Home Product REXTER RE6 TYPE

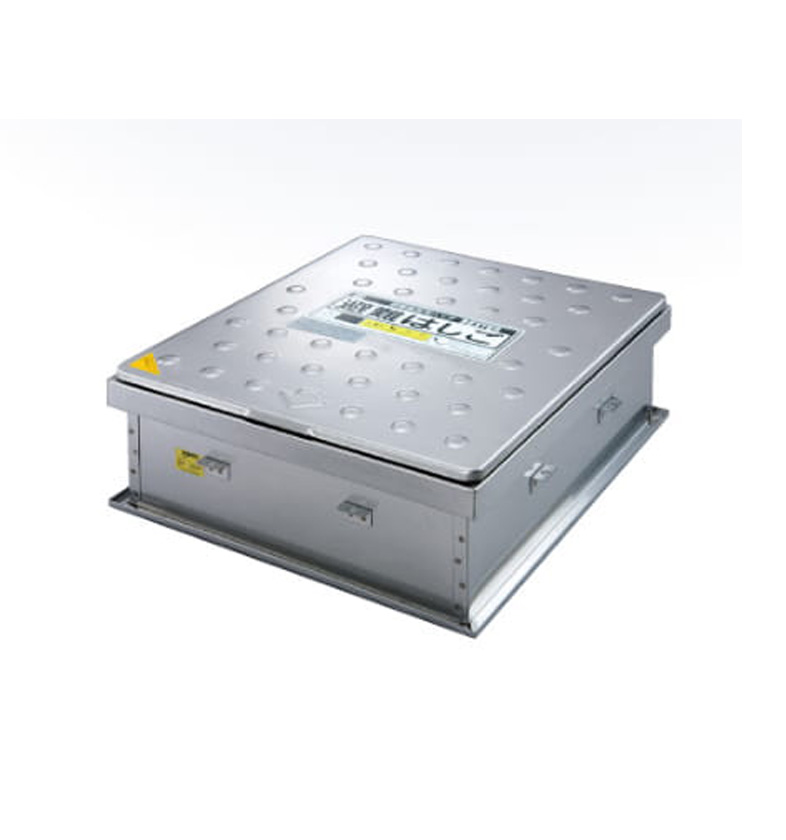

REXTER RE6 TYPE

Code: RE6-170 ~ RE6-250

Manufacturer: YAMATO PROTEC VIET NAM

Guarantee:

Price: Contact

Damage or serious degradation discovered in the periodic inspections must be repaired or revamped immediately. When you use REXTER to revamp an extinguisher, you simply need to remove the top and bottom escape lids, and then install the escape ladder inlike the conventional work method that requires crushing of the concrete on the veranda. Therefore, the work is simple and the time required can be substantially reduced.

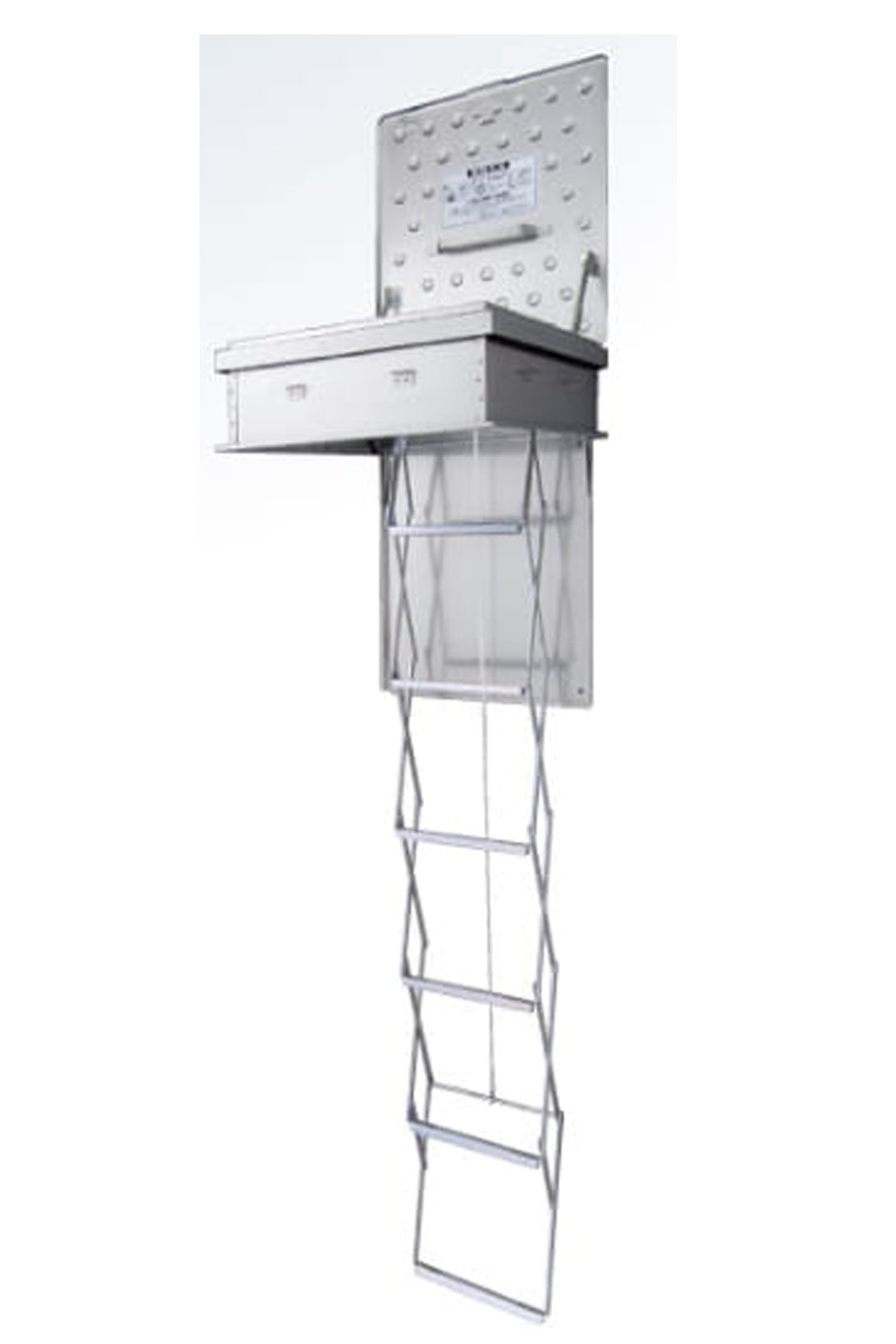

This ladder is a gently descending device. It allows you evacuate safety with simple operation in case of an emergency.

The plated ladder and stainless steel integrated frame are rust-resistant and durable.

This escape ladder enables safe evacuation from verandas when deadly smoke from fires occur in mid-to-high rise buildings.

Just simply open the lid and press the lever. It enables you to evacuate swiftly and safety.

You can easily stow away the lowered ladder using the attached winding handle.

Use of the stainless rivet at the rotating component enhances durability.

 Prevent falls due to child play

Mã khung

Frame

Model No.



Mã thang

Ladder

Model No.



Chiều dài thang

Ladder length

(mm)



Độ dày của khung

Frame thickness

(mm)



Chiều dài bậc tương ứng

Applicable floor height

(mm)



Kích thước

bên trong

Inside dimensions

(mm)



RE6-170

RH-5XF

1,777

170

1,790 ~ 2,200

600 x 600

RH-6XF

2,122

2,130 ~ 2,550

RH-7XF

2,465

2,480 ~ 2,890

RH-8XF

2,808

2,820 ~3,230

RE6-250

RH-9XF

3,151

250

3,160 ~3,580

600 x 600

RH-10XF

3,494

3,510 ~ 3,920

RH-11XF

3,837

3,850 ~ 4,260

RH-12XF

4,180

4,190 ~ 4,610
