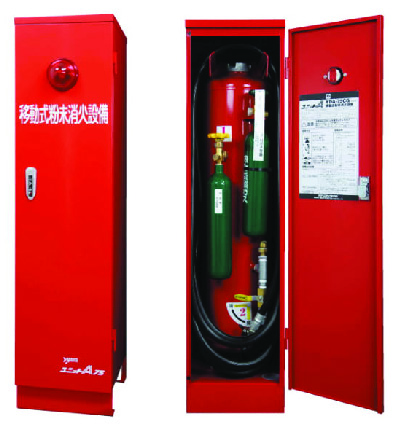

PRE-ENGINEERED SYSTEMS FOR PARKING LOTS "YAMATO UNIT A75"

Code: YDA-75CGE

Manufacturer: YAMATO PROTEC JAPAN

Guarantee:

Price: Contact

This equipment gathers excellent functions into a compact unit. It is installed in numerous parking lots due to its space-saving and easy-to-handle design.

"SOLAR BATTERY" FOR YAMATO UNIT A75

This is a solar energy-based outdoor type fire extinguishing equipment indicator. The indicator is always on day and night through the effective mechanism of the high-performance solar battery and secondary cell.

**Secondary cell = Sealed nickel-cadmium cell.

**MODEL: YDA-75CGE**
Extinguishing agent	Dry chemical (ABC) 33kg
Gross weight	Approx. 75kg
Cabinet dimensions (H x W x D)	1.135 x 290 x 350mm
Hose length	20m
Discharge time (20^oC)	Approx. 64sec
Discharge range (20^oC)	Approx. 8~10m

**SOLAR BATTERY - MODEL: YSB-ANP**
External dimensions (HxWxD)	190x135x45mm
Weight	Approx. 0.6kg
Battery capacity	2.4V 2.200mAh
Solar battery capacity	3.8V 1.9W
Minimum insolation	80cal/cm² day
Usable regions	Nationwide
Lighting time without insolation	Approx. 10days
